FEC Chian G80 Chain 1T 5T 10T Lifting Height With Motorized Trolley Electric Chain Hoist
Product Brief Introduction:
High Efficient 1 Ton Japan Electric Chain Hoist With Motorized Trolley has light aluminumalloyshell, light but hard. This 1 ton hoist's cooling fin is specially designed to ensure quick heat dissipation with the rate up to 40%.
This Hoist has magnetic braking device, it generate magnetic force to support the braking .
Our Hoist has the Japan FEC80 heat-treated steel alloy chain.
Waterproof push button is applied. It's light and durable.
Usage: Lifting, fixing, binding, traction, etc. Well accepted in various industrial fields.
Features and advantages:
1. The main parts of electric chain hoist adopt high quality steel product to ensure durability.
2. Special specifications and marks can be made according to customers' requirements.
3. Various lifting capacity, meet different needs.
4. The main body of electric chain hoist can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.
Product technical parameters:
| Model | Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Lifting Motor |
| Power(kw) | R.P.M(r/min) | Power Supply |
| SY-A0.5-1 | 0.5 | 3-9 | 6.8 | 12.2 | 0.75 | 1440 | 220-440V
50/60HZ
3Phase |
| SY-A1-1 | 1 | 3-9 | 6.6 | 10/20 | 1.5 | 1440 |
| SY-A1-2 | 1 | 3-9 | 3.4 | 10/20 | 0.75 | 1440 |
| SY-A2-1 | 2 | 3-9 | 6.6 | 10/20 | 3.0 | 1440 |
| SY-A2-2 | 2 | 3-9 | 3.3 | 10/20 | 1.5 | 1440 |
| SY-A3-1 | 3 | 3-9 | 5.4 | 10/20 | 3.0 | 1440 |
| SY-A3-2 | 3 | 3-9 | 4.4 | 11/21 | 3.0 | 1440 |
| SY-A3-3 | 3 | 3-9 | 2.4 | 11/21 | 1.5 | 1440 |
| SY-A5-2 | 5 | 3-9 | 2.7 | 10/20 | 3.0 | 1440 |
| SY-A7.5-3 | 7.5 | 3-9 | 1.8 | 10/20 | 3*2 | 1440 |
| SY-A10-4 | 10 | 3-9 | 2.7 | 10/20 | 3*2 | 1440 |
| SY-A15-6 | 15 | 3-9 | 1.9 | 10/20 | 3*2 | 1440 |
| SY-A20-8 | 20 | 3-9 | 1.4 | 10/20 | 3*2 | 1440 |
| SY-A25-8 | 25 | 3-9 | 1.1 | 10/20 | 3*2 | 1440 |
| SY-A30-10 | 30 | 3-9 | 0.9 | 10/20 | 3*2 | 1440 |
| SY-A35-16 | 35 | 3-9 | 0.7 | 10/20 | 3*2 | 1440 |

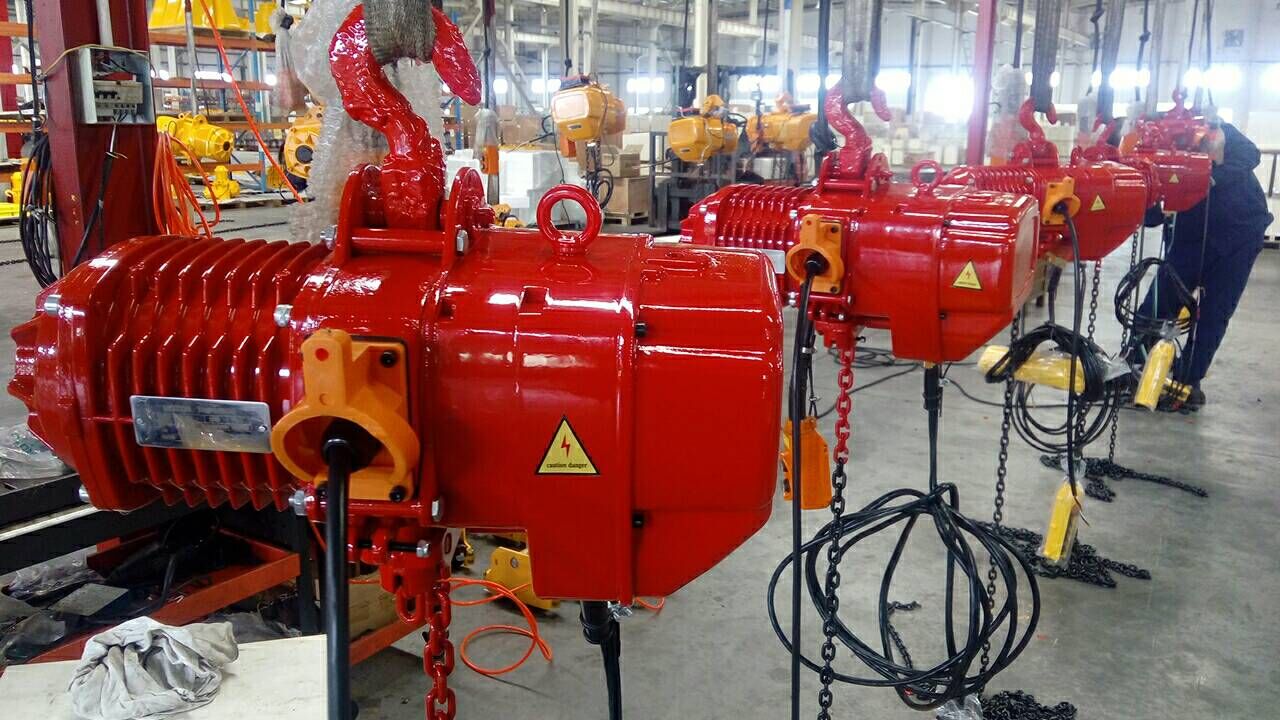

Factory show:
Product Tags:
|
|
G80 Chain 10T Lifting Motorized Trolley Electric Chain Hoist Images
|
