5 Ton 10 Ton Motorized Trolley Electric Wire Rope Crane Hoist
Brief Introduction
CD1 MD1 Type electric wire rope hoist with capacity varied from 0.25t to 32t. It has advantages of high working efficiency, fast lifting speed, durable and easy maintenance.
Small-sized lifting equipment which can be mounted on single beam, bridge, gantry and arm cranes.
Widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
Technical parameters
| Model | Lifting Capacity(t) | Lifting Speed(m/min) | Running Speed(m/min) | Wire Rope Type | Dia. Of Wire Rope(mm) | (H)Lifting Height |
| Power(kw) | R.P.M(r/min) | Power Supply |
| CD1-0.25 | 0.25 | 8 | 20 | 6*19 | 3.6 | 0.4 | 1380 | 220-440V 50/60HZ 3 Phase |
| CD1-0.5 | 0.5 | 8 | 20 | 6*37+1 | 4.8 | 0.8 | 1380 |
| CD1-1 | 1 | 8 | 20 | 6*37+1 | 7.4 | 1.5 | 1380 |
| CD1-2 | 2 | 8 | 20 | 6*37+1 | 11 | 3 | 1380 |
| CD1-3 | 3 | 8 | 20 | 6*37+1 | 13 | 4.5 | 1380 |
| CD1-5 | 5 | 8 | 20 | 6*37+1 | 15 | 7.5 | 1380 |
| CD1-10 | 10 | 7 | 20 | 6*37+1 | 15 | 13 | 1380 |
| CD1-16 | 16 | 3.5 | 20 | 6*37+1 | 15 | 13 | 1380 |
| CD1-20 | 20 | 3.5 | 20 | 6*37+1 | 20 | 13 | 1380 |
| | | | | | | | | |
| Model | Lifting Capacity(t) | Lifting Speed(m/min) | Running Speed(m/min) | Wire Rope Type | Dia. Of Wire Rope(mm) | (H)Lifting Height |
| Power(kw) | R.P.M(r/min) | Power Supply |
| MD1-0.25 | 0.25 | 8/0.8 | 20 | 6*19 | 3.6 | 0.4 | 1380 | 220-440V 50/60HZ 3 Phase |
| MD1-0.5 | 0.5 | 8/0.8 | 20 | 6*37+1 | 4.8 | 0.2/0.8 | 1380 |
| MD1-1 | 1 | 8/0.8 | 20 | 6*37+1 | 7.4 | 0.2/1.5 | 1380 |
| MD1-2 | 2 | 8/0.8 | 20 | 6*37+1 | 11 | 0.4/3 | 1380 |
| MD1-3 | 3 | 8/0.8 | 20 | 6*37+1 | 13 | 0.4/4.5 | 1380 |
| MD1-5 | 5 | 8/0.8 | 20 | 6*37+1 | 15 | 0.8/7.5 | 1380 |
| MD1-10 | 10 | 7/0.7 | 20 | 6*37+1 | 15 | 1.5/13 | 1380 |
| MD1-16 | 16 | 3.5/0.35 | 20 | 6*37+1 | 15 | 1.5/13 | 1380 |
| MD1-20 | 20 | 3.5/0.35 | 20 | 6*37+1 | 20 | 1.5/13 | 1380 |
Features and advantages
1. CD1/MD1 model can be used as a winch after slight modification.
2. Choose single or double lifting speed, even multi-speed with frequency inverters.
3. The suitable rail for low-headroom hoist is H-type rail, and I-type also is available.
4. The recommended rope reeving of the kind of hoist is 2/1, 4/2 or 4/1.
5. The normal traveling speed is 20m/min, or 12.5m/min, 16m/min, 25m/min, 32m/min by request.
6. The normal rail gauge of the double-girder hoist is 1200mm, 1500mm, 1800mm, 2100mm and 2300mm.
7. The normal traveling speed is 20m/min, or 30m/min, 45m/min by request.
8. CD1 has only a normal speed which can satisfy Normal application.
9. MD1 provides two speeds: Normal speed and Low speed. It can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc at a low speed.

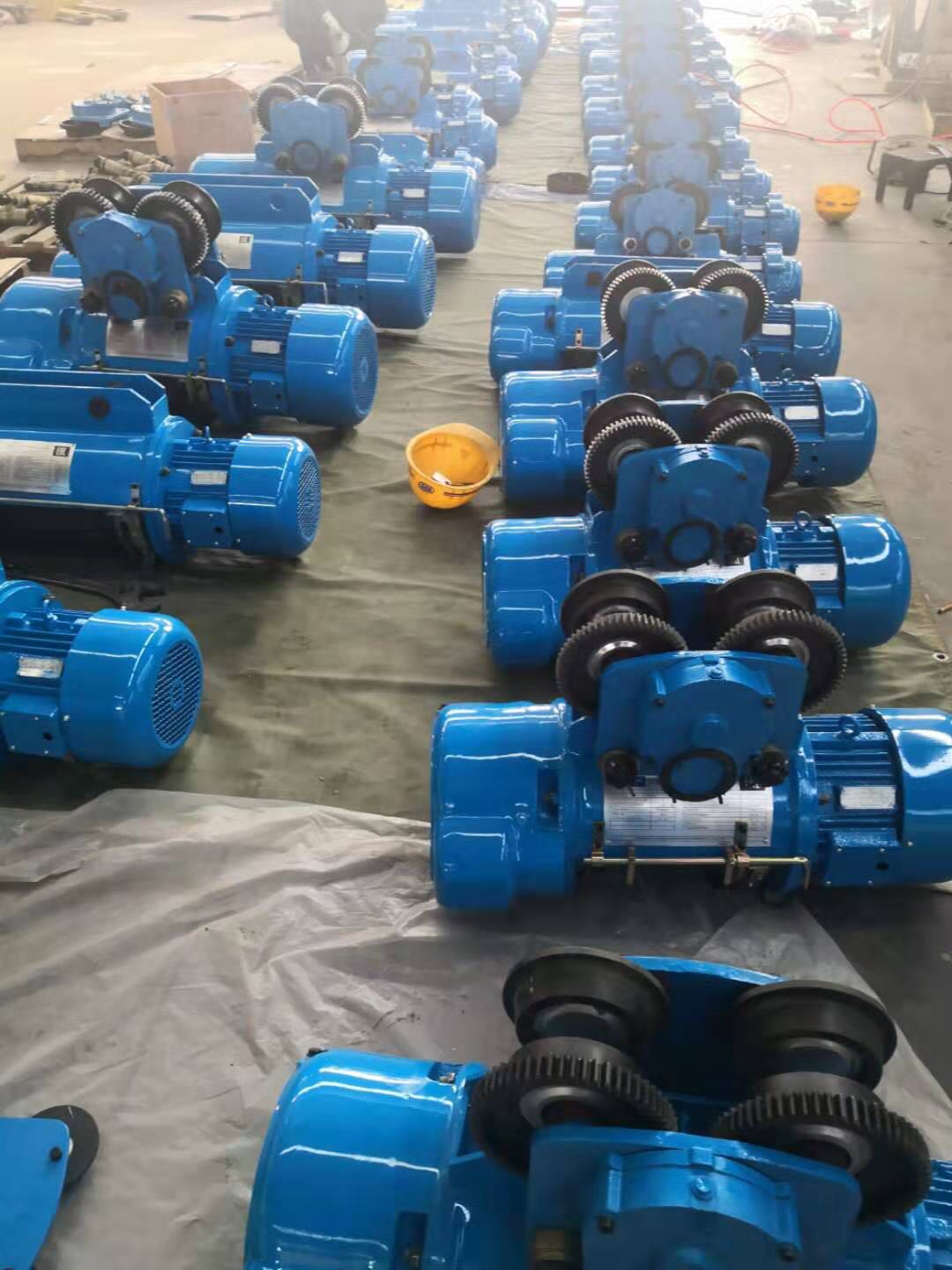

Product show:
