3 Phase Electric Wire Rope Hoist Winch 220 To 440v For Construction

Brand Name : JCYC

Model Number : CD1

Certification : CE & ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500 sets per month

Packaging Details : Plywood case

Product Name : CD MD factory supply electric wire rope hoist winch

Model no. : CD1

Capacity : 0.25t to 20t

Lifting height : 3 to 30m

Running Speed : 20 m/min

Power Supply : 220 V-440 V, 3 Phase, 50/60 HZ

Mobile : up, down, left and right

Application : Construction

Lifting speed : 8 m/min

Contact Now

3 Phase Electric Wire Rope Hoist Winch 220 To 440v For Construction





Product Feature



1. Light Dead Weight


2. Small Occupied Space



3. High Working Performance


4. Easy Operation


5. Safe and Reliable


6. Low Operation and Maintenance Costs





Technical Parameters



Model CD1 0.25T CD1 0.5T CD1 1T CD1 2T CD1 3T CD1 5T CD1 10T CD1 16T CD1 20T
Capacity T 0.25 0.5 1 2 3 5 10 16 20
Standard lifting height m 3-9 6-12 6-30 6-30 6-30 6-30 9-30 9-18 9-18
Lifting Speed m/min 8 8 8 8 8 8 7 3.5 3.5
Running Speed m/min 20 20 20 20 20 20 20 20 20
Wire rope type 6X9 D-6X37+1 D-6X37+1 D-6X37+1 D-6X37+1 D-6X37+1 D-6X37+1 6X37+1 6X37+1
I-beam track type 16-22b 16-28b 16-28b 20a-32c 20a-32c 25a-63c 25a-63c 45a-63c 50a-63c
Loop track minium radius m 0.8 1.5 1.5-4 2-4 2-4 2.5-5 2.5-9 3-4.6 3-4.6
Power supply 220V-440V,3phase,50/60HZ
Working Duty Mid M3 Mid M3 Mid M3 Mid M3 Mid M3 Mid M3 Mid M3 Mid M2 Mid M2

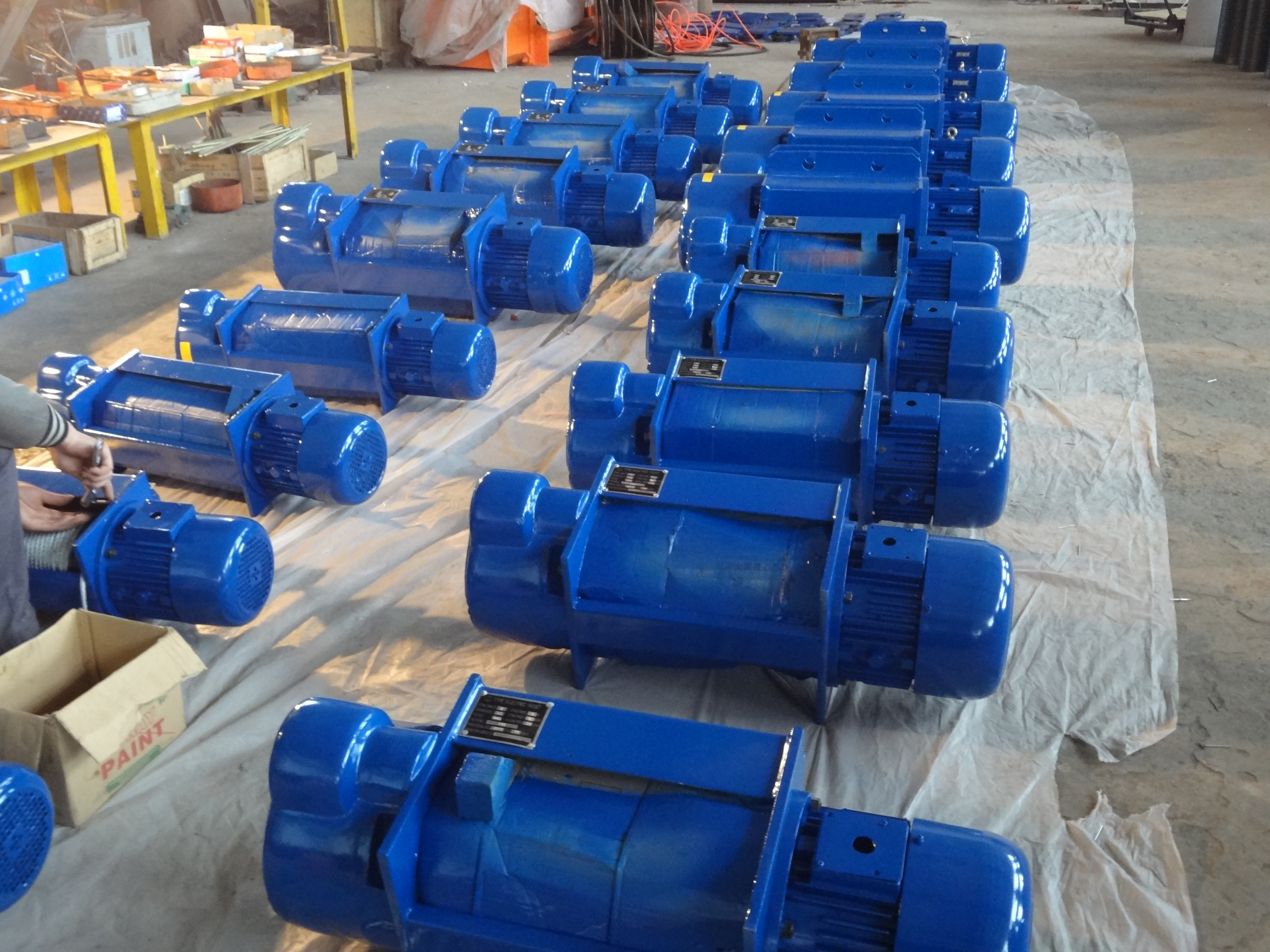

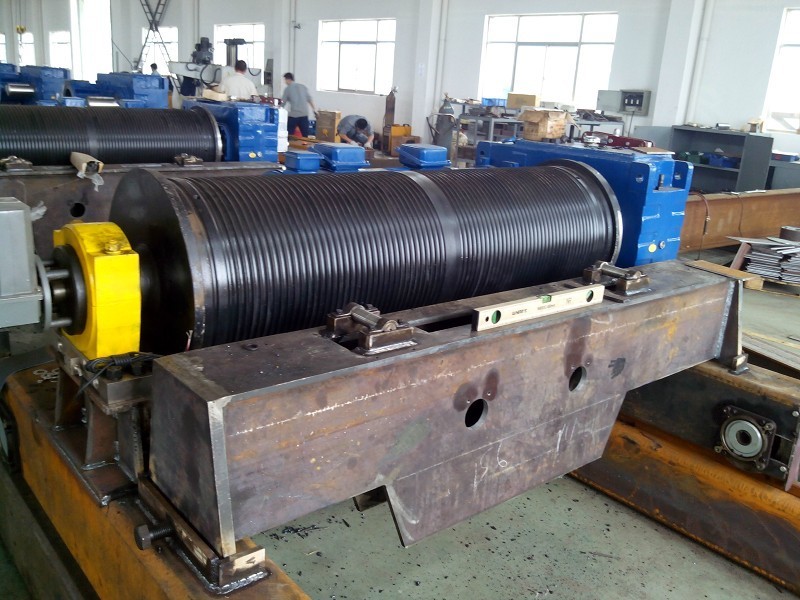

Factory show



3 Phase Electric Wire Rope Hoist Winch 220 To 440v For Construction

3 Phase Electric Wire Rope Hoist Winch 220 To 440v For Construction
