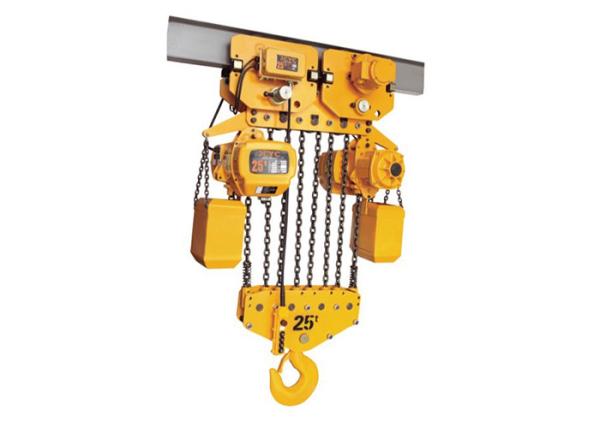

25T Mining Winch Lifter Electric Chain Hoist With Electric Trolley

Brand Name : JCYC/OEM

Model Number : SY

Certification : CE ISO9001 Manufacturing licence

Place of Origin : China

MOQ : One piece

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500pcs per month

Delivery Time : 15 working day

Packaging Details : Plywood Case

Product name : 25T Mining Winch Lifter Electric Chain Hoist With Electric Trolley

Application : Mining area, Warehouse, Building, Wharf, Ect.

Capacity : 0.5t-35t

Type : Electric

Color : Alternative

Condition : New

Chain : G80

Contact Now

25T Mining Winch Lifter Electric Chain Hoist With Electric Trolley




Usage:



Lifting, fixing, binding, traction, etc. Well accepted in mining, construction etc. various industrial fields.

Features and advantages:


1. The main parts of it adopt high quality steel product to ensure durability.
2. Special specifications and marks can be made according to customers' requirements.
3. Various lifting capacity, meet different needs.
4. The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.





Product technical data:



Model Lifting Capacity(t) Lifting Height(m) Lifting Speed(m/min) Running Speed(m/min) Lifting Motor Running Motor
Power(kw) R.P.M(r/min) Power(kw) R.P.M(r/min)
SY-A0.5-1 0.5 3-9 6.8 12.2 0.75 1440 0.12 1440
SY-A1-1 1 3-9 6.6 10/20 1.5 1440 0.4 1440
SY-A1-2 1 3-9 3.4 10/20 0.75 1440 0.4 1440
SY-A2-1 2 3-9 6.6 10/20 3.0 1440 0.4 1440
SY-A2-2 2 3-9 3.3 10/20 1.5 1440 0.4 1440
SY-A3-1 3 3-9 5.4 10/20 3.0 1440 0.4 1440
SY-A3-2 3 3-9 4.4 11/21 3.0 1440 0.4 1440
SY-A3-3 3 3-9 2.4 11/21 1.5 1440 0.4 1440
SY-A5-2 5 3-9 2.7 10/20 3.0 1440 0.75 1440
SY-A7.5-3 7.5 3-9 1.8 10/20 3*2 1440 0.75 1440
SY-A10-4 10 3-9 2.7 10/20 3*2 1440 0.75 1440
SY-A15-6 15 3-9 1.9 10/20 3*2 1440 0.75*2 1440
SY-A20-8 20 3-9 1.4 10/20 3*2 1440 0.75*2 1440
SY-A25-8 25 3-9 1.1 10/20 3*2 1440 0.75*2 1440
SY-A30-10 30 3-9 0.9 10/20 3*2 1440 0.75*2 1440
SY-A35-16 35 3-9 0.7 10/20 3*2 1440 0.75*2 1440



Detailed technologies:



Electric chain hoist shell

It is made of light aluminum alloy shell, light but hard. The cooling fin is especially designed to ensure quick heat dissipation with the rate up to 40% and continuous service. The integral enclosed structure is applicable to places like chemical plant and electroplate factory.

Electric chain hoist chain

The chain shall adopt the imported FEC G80 ultra heat-treatable aluminum alloy chain. It can be safety used in power environments such as rain, sea water and chemicals.

Electric chain hoist hook

It is hot forging with perfect strength that is hard to break. The operation safety of the lower hook is ensured by its 360 degrees rotation and safety flap.

Electric chain hoist electrics

Chint brand, China famous brand, Schneider brand,orignal from France Inverse phase sequence protecting device.

Electric chain hoist limit switch

The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.

Electric chain hoist pendant with cable

Yueqing Brand the best in china. Master Controller with waterproof Push Button for UP, DOWN, Forward, Reverse, start& Emergency Stop. It is light and durable.

Electric chain hoist remote control

Telecrane Brand the best in china. Master Controller with waterproof Push Button for UP, DOWN, Forward, Reverse, start& Emergency Stop. It is light and durable.

Hot sale electric chain hoist:



25T Mining Winch Lifter Electric Chain Hoist With Electric Trolley
