Yellow Color Plain Geared Movable Push Beam Trolley 0.5t - 20t

Product Categories

Chongqing Shanyan Crane Machinery Co., Ltd.

Contact Now

Name: Yellow Color Plain Geared Movable Push Beam Trolley 05t 20t
Brand: JCYC
Price: 1 USD

Brand Name : JCYC

Model Number : Plain Geared Trolley

Certification : CE, ISO

Place of Origin : China

MOQ : 5 PCS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 pcs per month

Delivery Time : 15 working days

Packaging Details : Standard Export Package

Model : Movable Plain Geared Trolley

Max. Capacity : 20t

Min. Capacity : 0.5t

Color : Yellow or Customized Color

Warranty : 1 year

Feature : Plain Geared

Test Load : 0.63t-25t

Contact Now

0.5t to 20t Yellow Color Movable Plain Geared Trolley Movable Push Beam Trolley

Product Description:

0.5t-20t Yellow Movable Plain Geared Trolley

Usage:

Used to support and mount hoisting equipment for fixed or travelling applications, our trolley can be supplied in many different designs.

Features and advantages:

1. Light weight and robust construction.

2. Super-quick adjustment to any monorail.

3. Durable baked enamel paint protection.

4. Precision ball bearing trolley wheels

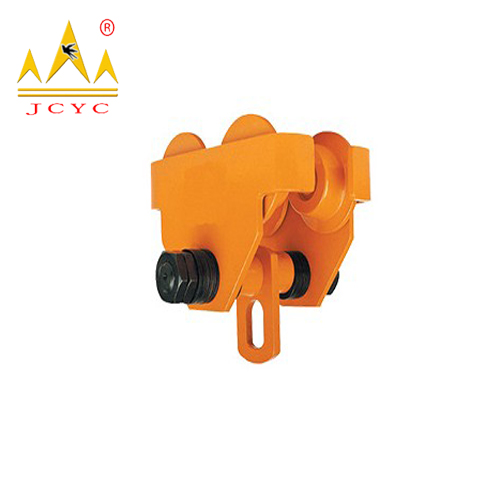

Photo:

Yellow Color Plain Geared Movable Push Beam Trolley 0.5t - 20t

Parameter:

		Plain Geared Trolley, Manual Trolley
Capacity (t)		0.5	1	2	3	5	10	20
Test Load (t)		0.63	1.25	2.5	4	6.3	12.5	25
Running Height (m)		2.5	2.5	2.5	3	3	3	3
Chain Pull to Lift Full Load (n)		60	85	120	150	170	320	2*320
Min. Radius of Turn (m)		0.8	0.9	1	1.1	1.3	1.7	5
N.W (kg)		10	12	18	26	37	96	215
I-Beam Range (mm)		64-130	64-130	74-130	74-146	100-180	122-230	122-230
Basic Dimension (mm)	A	262	262	281	307	322	423	475
	B	196	225	270	308	361	492	554
	C	181	202	264	303	368	460	520
	H	107	130	169	193	219	238	300

Warm Note:

OEM, ODM, sample, trial and mixed orders are all ok, welcomes testing our quality and service.
