G80 Forged Round Ring 1.1 ton - 20 ton Quenched And Tempered Construction

Product Categories
Chongqing Shanyan Crane Machinery Co., Ltd.
Contact Now

G80 Forged Round Ring 1.1 ton - 20 ton Quenched And Tempered Construction

  • 1
  • 2

Brand Name : JCYC

Model Number : FRR

Certification : CE

Place of Origin : CHINA

MOQ : 100 PCS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000 pcs / week

Delivery Time : 30 working days

Packaging Details : Carton

Material : G80 Forged Round Ring

Color : Yellow

Max. Cap. : 20 ton

Min. Cap. : 1.1 ton

Grade : G80

Breaking Load ton : 4.4 ton - 80 ton

Contact Now

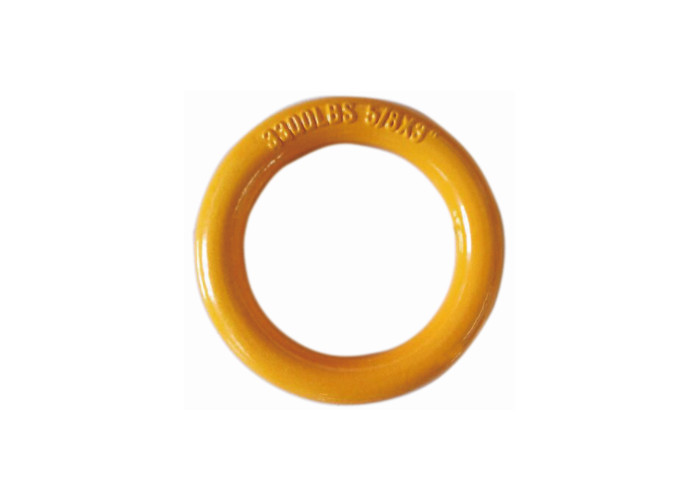

G80 Forged Round Ring




G80 Forged Round Ring 1.1 ton - 20 ton Quenched And Tempered ConstructionG80 Forged Round Ring 1.1 ton - 20 ton Quenched And Tempered Construction

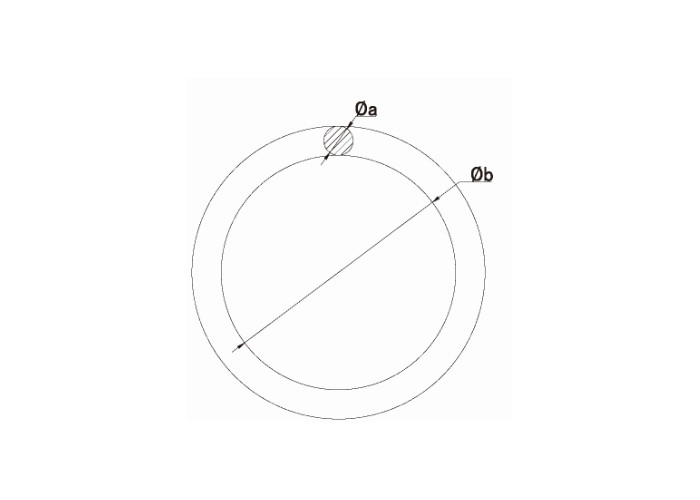

WLL ton Breaking Load ton Φa mm Φb mm Weight kg
1.1 4.4 12.7 50 0.2
1.5 6 15.9 76 0.45
2.2 8.8 19 76 0.7
2.5 10 19 102 0.8
3.2 12.8 22.2 102 1.2
4.5 18 25.4 102 1.6
6.5 26 28.6 152.4 2.8
9 36 31.8 152.4 3.5
9 36 31.8 203.2 4.5
9 36 31.8 254 5.5
10 40 38.1 152.4 5
10 40 38.1 203.2 6.5
10 40 38.1 254 7.9
16 72 44.5 228.6 10.3
20 80 50.8 342.9 19.4
