400kg Lifting Tools / Pneumatic Balancer with Wire Rope Reel
Usage:
Suitable for occasions requiring stable transportation, like production, processing and lifting of aircraft, aerospace, automobiles, precision machinery, fragile and explosive products, etc.
Features and advantages:
1. Durable, reliable and free maintenance wire rope reel.
2. Double dustproof ball bearing with thrust.
3. The piston and cylinder are lubricated by Germany grease so the reciprocating movement is lighter and smoother when compressed air enters the cylinder.
4. Pneumatic valve: Precision piston motion controls in and out air, achieves floating and balance functions.
5. The button control handle accurately and effectively controls speed and rhythm of lifting and dropping.
6. Gas protection: the brake will be automatically locked and directly controlled by centrifugal brake when the gas source is suddenly cut off to prevent loads from falling off.
7. Brake mechanism: a centrifugal brake system can effectively controls suddenly rise or drop of wire rope and hook which caused by suddenly weight loss or falling.
8. Ball screw: the piston pushes roller in the drum to rotate the roller synchronously so drives wire rope to lifting loads.
9. Working principle: the pressure energy of compressed air will be converted into rotary mechanical energy by movement of cylinder piston and the output torque drives the lifting mechanism to run. It has a balanced control valve and a control switch to lifting and balancing objects.
10. Our professional enginnering and technical personnel can make the best handling solution for you according to your specific usage and installation requirements.
Photo:

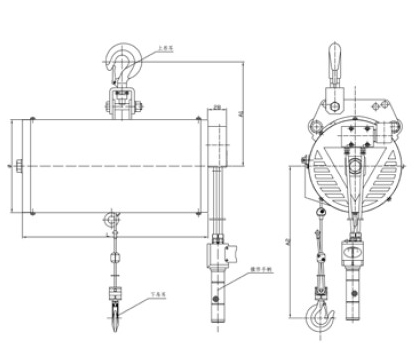

Parameter:
| Items | Unit | Specifications |
| Capacity | kg | 0-60 | 60-100 | 100-200 | 200-400 |
| SWL | m | 1.4 | 1.8 | 2 | 1 |
| Φ | mm | 165 | 260 | 260 | 260 |
| L | mm | 410 | 406 | 520 | 520 |
| A1 | mm | 240 | 290 | 290 | 290 |
| A2 | mm | 400 | 450 | 450 | 450 |
| Number of Wire Rope | pc | 1 | 1 | 1 | 2 |
| Working Medium | Compressed Air |
| Working Pressure | mpa | 0.1-0.7 | 0.1-0.7 | 0.1-0.7 | 0.1-0.7 |
| Air Consumption | M3/min | 0.27 | 0.33 | 0.35 | 0.36 |
| Hose Fitting Thread | in | G 3/8 | G 3/8 | G 3/8 | G 3/8 |
| Hose Dia. | mm | 10/12 | 10/12 | 10/12 | 10/12 |
| N.W | kg | 25 | 37 | 58 | 62 |
| Speed Range | Rated Load Speed | UP | m/min | 59 | 30 | 17 | 8 |
| No load Speed | Down | m/min | 23 | 25 | 26 | 28 |
Warm Note:
OEM, ODM, sample order, trial order and mixed order are all acceptable. One year warranty and free replacement if any quality problem inside 7 days.
