Mining / Marine / Boat Electric Winch with 220V / 380V
Product introduction:
KCD type electric hoist winch is a kind of electric winch, widely used in the construction industry, with the feature of stable
and reliable operation, hoisting height is can reach 100 meter.
Applies to industrial enterprise, mining company, normal factory, workshop, railway, sea port, warehouse, stock ground and so on. This KCD winch is for any angle of handing, lifting loading and unloading, it is the common machinery for lifting work in factory and warehouse and individuals.
Features:
1.Wire Rope Fixing: No escape of wire rope from the drum by means of P.T.screw device.
2. Drum Transmission: The shaft direct driving drum provides rope replacement and alteration of rotation with easy.
3.Electromagnetic: Designed for both static and dynamic loading.Brake will automatically apply in the event of power cut.Large friction surface area.No adjustments or serving requirement.
4.Gear Box: Provides strength,durability an non-worry of breakage of structure
5.Special Motor insulated B,with the features of big start torque, small inertia, lower temperature rise,it can work frequently for a long time
6.Driving Gear: The heat treated gear with bearings features durable performance and anti-wear.
7. Machine Fixture: It is made of super armor plate,used for suspender, lifter and girder.
Product Parameters:
| Model | Lifting capacity(kg) | Motor power(kw) | Lifting height(m) | Lifting speed(m/min) | Voltage(v) | G.W/N.W(kg) |
| KCD300 | 300/600 | 0.4 | 0-100 | 12 | 220V/380V etc. | 35/33 |
| KCD400 | 400/800 | 1.0 | 0-100 | 12 | 220V/380V etc. | 42/40 |
| KCD500 | 500/1000 | 0.8 | 0-100 | 14 | 220V/380V etc. | 52/50 |
| KCD750 | 750/1500 | 1.5 | 0-100 | 12 | 220V/380V etc. | 42/40 |
| KCD1000 | 1000/2000 | 3.0 | 0-100 | 14 | 220V/380V etc. | 52/50 |
Questions before make quotation:
1. Purpose of the winch, lifting or pulling?
2. Where will you use the winch? construction, mine or marine?
3. Capacity?
4. Rope volume?
5. Requirement for rope speed?
6. Voltage?
7. Any other specific request such as double speed, additional equipment?
The more detail, the more accurate quotation.
Product show:

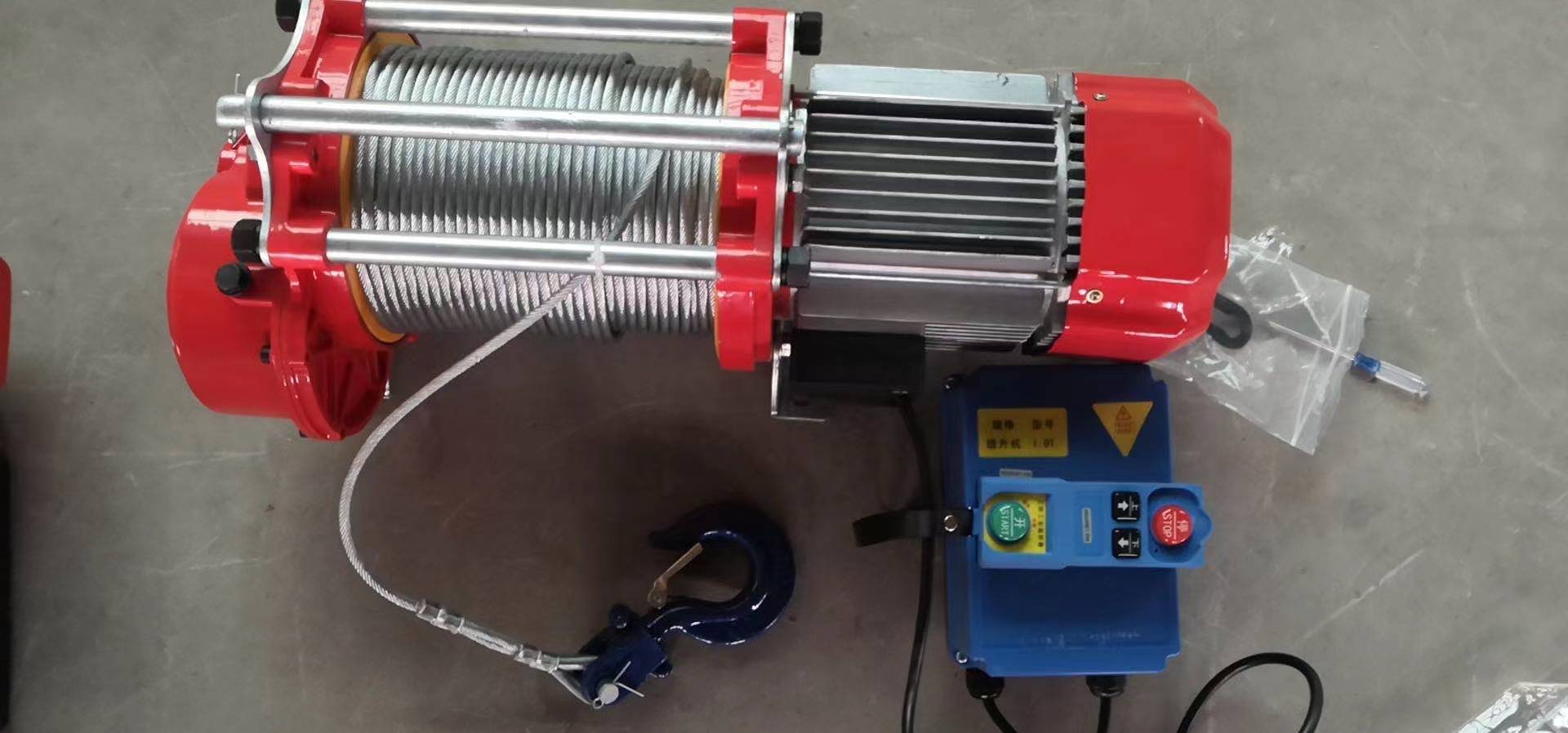

with wireless remote control

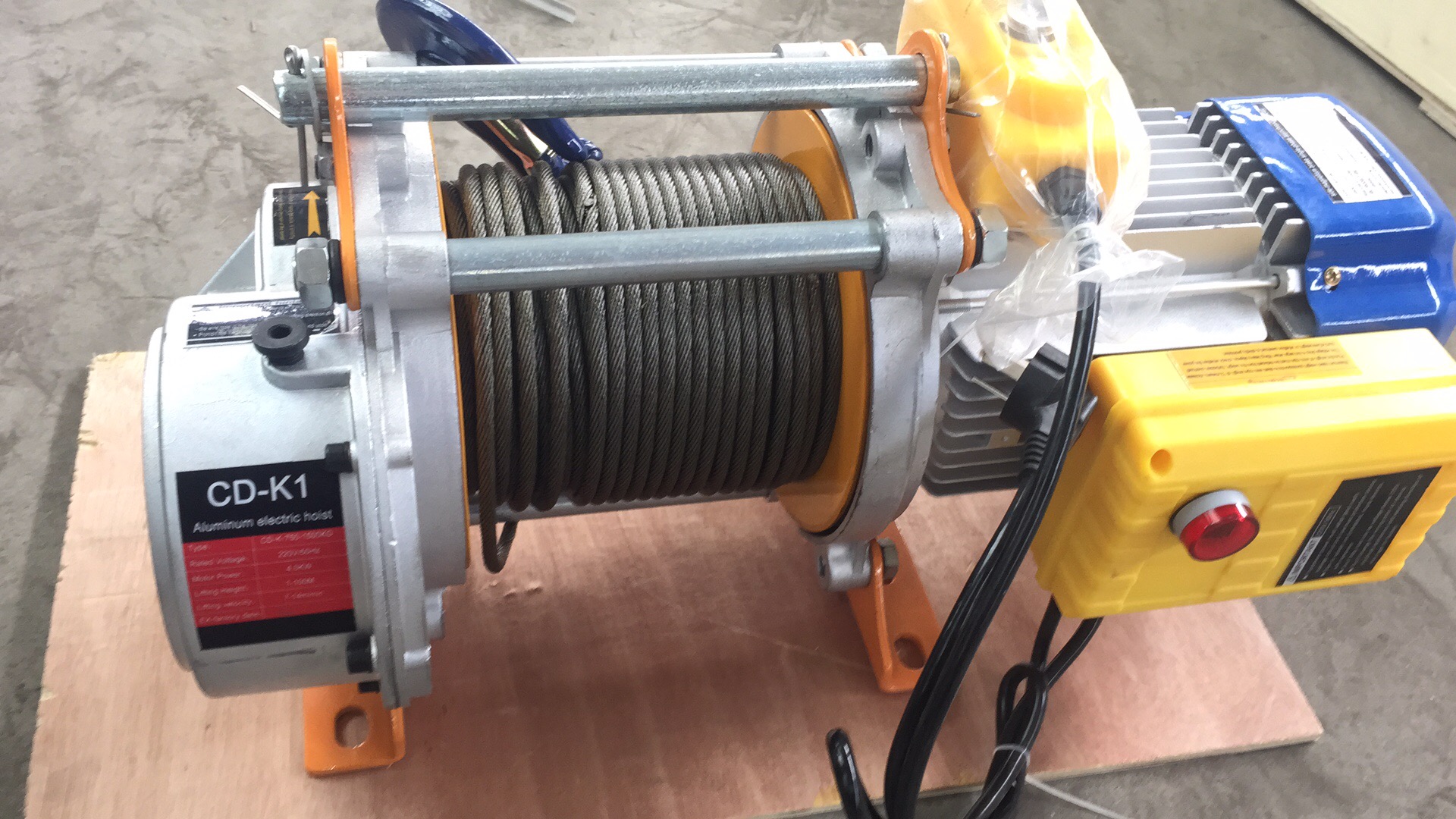

with pendent control
package
