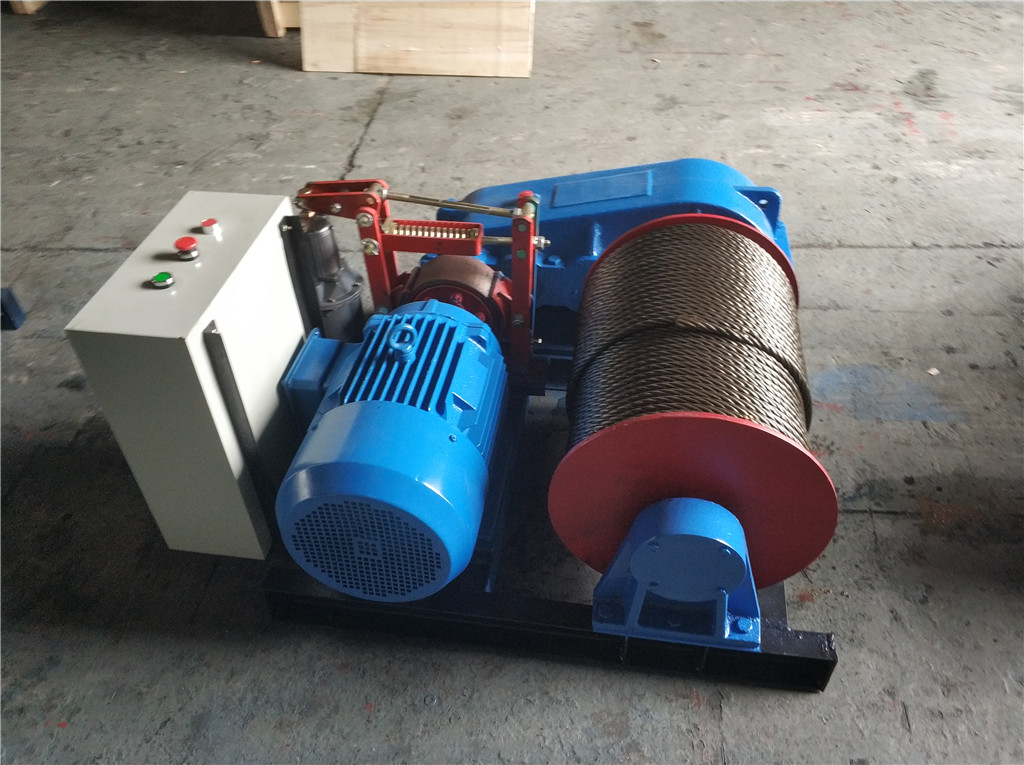

Electric Winch With Heavy Duty Low Speed Wire Rope Sling Type 500M
JM model low speed wire rope electric winch has slow hoisting/pulling speed, it is used for hoisting and unloading the weight materials, such as all kinds of large and middle concrete constructure of steel, installation and disassembly of mechanical equipment. It is suitable for construction and installation engineering of constraction, mining area, factory, shipyard and so on.
The standard capacity of electric winch: 1t, 1.6t, 2t, 3.2t, 5t, 6t, 8t, 10t, 12.5t, 13.5t, 16t, 20t, 25t, 30t.
The control models: Hand wheel switch or control box with pushbuttons or remote control.
Slow speed use for crane and installation industry feature
- Precision needle bearing used in high-load areas offering lower friction level and longer life
- Electrical parts protected by steel box from rain
- Emergency stop button for emergency
- Steel boxes equip with lock to avoid other staffs in addition to operator to operate winches
- Gear reducer driving type
- It could lift, drag and drop vertically, obliquely
- Rope winding orderly, safe and reliable on performance
- The big curvature, fiber oil lubrication, galvanized cover of the wire rope extend its service life
- Corrosion resistant painting
- Running stably, Reliable operation with low noise (no exceed 85dB)
- Pass 1.25 times static overload test
| Model | Cable rated pull
(kg) | Cable rated
speed
(m/min) | Wire rope
(ɸmm) | Reduction box | Drum(mm) |
| Type | Transmission
ratio | Dia(ɸ) | Length |
| JM2 | 2000 | 12 | 15.53 | JZQ350 | 23.34 | 260 | 480 |
| JM3 | 3000 | 10 | 17 | JZQ350 | 31.50 | 310 | 510 |
| JM5 | 5000 | 11 | 21.50 | JZQ400 | 23.34 | 400 | 730 |
| JM8 | 8000 | 10 | 26 | JZQ500 | 31.50 | 500 | 900 |
| JM10 | 10000 | 9 | 30 | JZQ650 | 40.17 | 550 | 1000 |
| JM12 | 12000 | 9 | 32 | JZQ650 | 40.17 | 650 | 1000 |
| JM16 | 16000 | 6.6 | 36.5 | JZQ750 | 31.50 | 750 | 1830 |
| JM20 | 20000 | 7.7 | 39 | JZQ750 | 31.50 | 750 | 1830 |
| JM25 | 25000 | 8.5 | 42 | JZQ750 | 31.50 | 850 | 1925 |
| JM30 | 30000 | 8.5 | 48 | JZQ850 | 23.34 | 960 | 1960 |
| Model | Wire length
(m) | Type | Motor Power (kw) | Rotate speed
(r/min) | Arrester | Size
(cm) | Weight(kg) |
| Without rope | With rope |
| JM2 | 150 | Y160M-6 | 7.5 | 970 | TJ2-200 | 115x100x60 | 630 | 760 |
| JM3 | 180 | Y160M-6 | 7.5 | 970 | TJ2-200 | 138x106x65 | 680 | 870 |
| JM5 | 250 | YZR180L-8 | 11 | 685 | TJ2-300 | 185x135x90 | 1400 | 1890 |
| JM8 | 250 | YZR225M-8 | 22 | 715 | YWZ-300 | 205x278x105 | 3000 | 3740 |
| JM10 | 300 | YZR250M1-8 | 30 | 720 | YWZ-300 | 220x180x110 | 4000 | 5450 |
| JM12 | 300 | YZR250M2-8 | 37 | 725 | YWZ-300 | 250x190x120 | 5500 | 7350 |
| JM16 | 450 | Y2ZR280-8 | 45 | 717 | YWZ-400 | 390x300x245 | 7500 | 12360 |
| JM20 | 500 | YZR250M2-6 | 45 | 965 | YWZ-400 | 400x300x170 | 8500 | 12300 |
| JM25 | 500 | YZR280S-6 | 55 | 969 | YWZ-400 | 412x300x200 | 9500 | 13920 |
| JM30 | 500 | YZR280S-6 | 75 | 969 | YWZ-400 | 450x300x250 | 11000 | 17200 |
