Light Weight Crane Spare Parts , Sliding Contact Line Conductor Bar Systems

Brand Name : JCYC

Model Number : HFP56-4

Certification : CE & ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 to 300 sets per week

Delivery Time : 15 to 20 working days

Packaging Details : Plywood case

Category : Conductor line

Feature : Good conductivity

Application : Power supply system for crane traveling

Dimensions : Customised

Max. current : 240A

Max. voltage : 660V

Contact Now

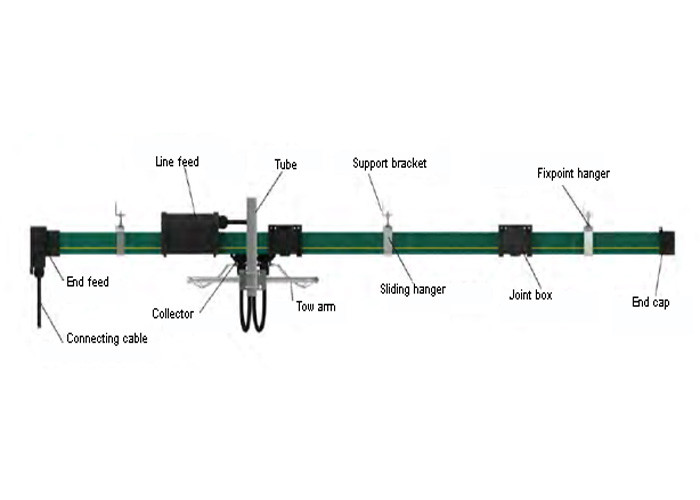

Light Weight Good Conductivity Sliding Contact Line Conductor Bar Systems



Specifications:



  Electrical parameters:
  Max. Current    240A
  Max. Voltage    660V
  Dielectric strength    30-40KV/mm
  Spec. resistance    5 ×1015 Ohm × cm
  Surface resistivity    1013 Ohm × cm
  Leakage resistance    CTI600-2.7
  Mechanical parameters:
  Flexible strength    75N/mm2 ±10%
  Tensile strength    40N/mm2 ±10%
  Temperature range:
  Standard Housing    -20ºC — +70ºC
  High Temp. Housing    -10ºC — +115ºC
  Low Temp. Housing    -40ºC — +80ºC
  Combustibility:
  Flame retardant    Class B1 - no flaming particles, self-extinguishing
  Resistance to chemicals:
  +45ºC
  Gasoline    Sulphuric acid 50%
  Mineral oil    Caustic soda 25% & 50%
  Grease    Hydro-chloric acid, concentrated



Product Description:



Light Weight Crane Spare Parts , Sliding Contact Line Conductor Bar Systems

Model Poles Conductor cross section (mm²) Max. Current (A) Leakage-distance (mm) Max. Voltage (V) Resistance (Ω/km) Weight (kg)
  HFP56-4-8/35 4 8 35 35 660 1.944 2.09
  HFP56-4-10/50 4 10 50 35 660 1.656 2.16
  HFP56-4-12/65 4 12 65 35 660 1.321 2.23
  HFP56-4-15/80 4 15 80 35 660 1.137 2.30
  HFP56-4-20/100 4 20 100 33 660 1.011 2.43
  HFP56-4-25/120 4 25 120 33 660 0.713 2.56
  HFP56-4-35/140 4 35 140 33 660 0.522 2.95
  HFP56-4-50/170 4 50 170 33 660 0.337 3.25
  HFP56-4-70/210 4 70 210 33 660 0.265 3.85
  HFP56-4-80/240 4 80 240 30 660 0.233 4.16
