Colorful Round Web Lifting Slings 100% Polyester with Huge Capcity from 1t to 100t
Product Description:
Round Colorful Web Sling, Lifting Sling with High Strength
Usage:
Apply for daily civilian using, port transportation, industrial production line, freight logistics and other places for loading and unloading.
Features and Advantages:
1. Can be single ply or double ply; depends on different sewing method.
2. The specification can be customized.
3. Loading surface is wide to reduce the weight at each loading point.
4. No damages to loading objects.
5. Various loading method are acceptable.
6. High strength and weight ratio.
7. Anti-abrasion and anti-incision protection sleeve can be attached.
8. Special working load labels are differentiated by colors according to international standard.
9. Light and soft, widely used in small narrow space.
10. Enhanced Anti-abrasion in PU processing.
11. Non-conductive, no danger of electric stroke.
12. In compliance with European standard En1492-1:2000 and Chinese standard JB/T8521-2007.

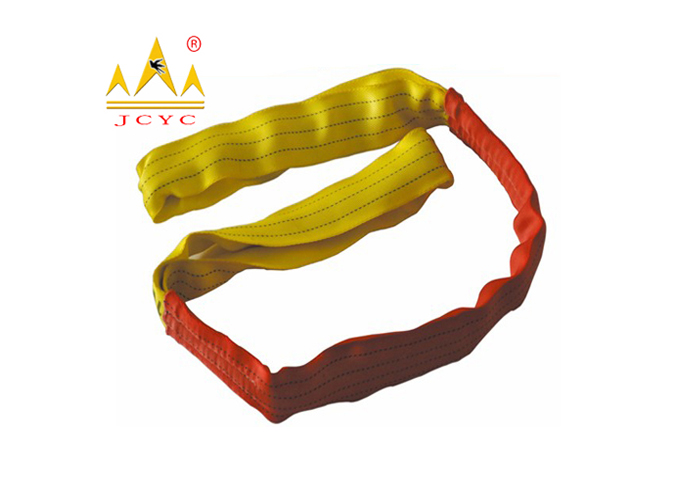

Photo:
Parameter:
| Max. SWL=Mode Coefficient PX Working Load Limit | Max, SWL of Lifting Method |
| Code | Color | Single Max. Working Load Limit | 2-Lecs Max. Load Limit | Approx. Width (mm) | Min. (m) | Max. Length (m) |
| Upright | Choked | β | Upright | Choked | Upright | Choked |
| 0°-7° | 7°-45° | 45°-60° | 45° | 45° | 45° | 45°-60° | 45°-60° |
| | | | | | | | | | |
| 1 | 0.8 | 2 | 1.4 | 1 | 0.7 | 1.4 | 1.12 | 1 | 0.8 |
| JCYC-LS105-01 | Purple | 1000 | 800 | 2000 | 1400 | 1000 | 700 | 1400 | 1120 | 1000 | 800 | 50 | 1 | 100 |
| JCYC-LS105-02 | Green | 2000 | 1600 | 4000 | 2800 | 2000 | 1400 | 2800 | 2240 | 2000 | 1600 | 60 | 1 | 100 |
| JCYC-LS105-03 | Yellow | 3000 | 2400 | 6000 | 4200 | 3000 | 2100 | 4200 | 3360 | 3000 | 2400 | 70 | 1 | 100 |
| JCYC-LS105-04 | Grey | 4000 | 3200 | 8000 | 5600 | 4000 | 2800 | 5600 | 4480 | 4000 | 3200 | 75 | 1 | 100 |
| JCYC-LS105-05 | Red | 5000 | 4000 | 10000 | 7000 | 5000 | 3500 | 7000 | 5600 | 5000 | 4000 | 80 | 1 | 100 |
| JCYC-LS105-06 | Brown | 6000 | 4800 | 12000 | 8400 | 6000 | 4200 | 8400 | 6720 | 6000 | 4800 | 90 | 1 | 100 |
| JCYC-LS105-07 | Blue | 8000 | 6400 | 16000 | 11200 | 8000 | 5600 | 11200 | 8960 | 8000 | 6400 | 100 | 1 | 100 |
| JCYC-LS105-08 | Orange | 10000 | 8000 | 20000 | 14000 | 10000 | 7000 | 14000 | 11200 | 10000 | 8000 | 110 | 1 | 100 |
| JCYC-LS105-09 | Orange | 12000 | 9600 | 24000 | 16800 | 12000 | 8400 | 16800 | 13440 | 12000 | 9600 | 125 | 1 | 100 |
| JCYC-LS105-10 | Blue | 15000 | 12000 | 40000 | 28000 | 15000 | 14000 | 28000 | 22400 | 15000 | 12000 | 150 | 1 | 100 |
| JCYC-LS105-11 | Orange | 20000 | 16000 | 60000 | 42000 | 20000 | 21000 | 42000 | 33600 | 20000 | 16000 | 180 | 1 | 100 |
| JCYC-LS105-12 | Orange | 25000 | 20000 | 50000 | 35000 | 25000 | 17500 | 35000 | 28000 | 25000 | 20000 | 200 | 1 | 100 |
| JCYC-LS105-13 | Orange | 30000 | 24000 | 60000 | 42000 | 30000 | 21000 | 42000 | 33600 | 30000 | 24000 | 220 | 1 | 100 |
| JCYC-LS105-14 | Orange | 40000 | 32000 | 80000 | 56000 | 40000 | 28000 | 56000 | 44800 | 40000 | 32000 | 250 | 1 | 100 |
| JCYC-LS105-15 | Orange | 50000 | 40000 | 100000 | 70000 | 50000 | 35000 | 70000 | 56000 | 50000 | 40000 | 270 | 1 | 100 |
| JCYC-LS105-16 | Orange | 60000 | 48000 | 120000 | 84000 | 60000 | 42000 | 84000 | 67200 | 60000 | 48000 | 280 | 1 | 100 |
| JCYC-LS105-17 | Orange | 80000 | 64000 | 160000 | 112000 | 80000 | 56000 | 11200 | 89600 | 80000 | 64000 | 300 | 1 | 100 |
| JCYC-LS105-18 | Orange | 100000 | 80000 | 200000 | 140000 | 100000 | 70000 | 140000 | 112000 | 100000 | 80000 | 320 | 1 | 100 |
Warm Note:
OEM, ODM, sample, trial and mixed orders are all welcomed to test our quality and service.
