Construction Machinery Parts Suspended Platform 20T Electric Hoist with craw

Brand Name : JCYC

Model Number : SHSL

Certification : ISO9001,CE

Place of Origin : CHINA

MOQ : 1Set

Price : USD6000-USD12000

Payment Terms : L/C,T/T,Western Union

Supply Ability : 10sets per month

Delivery Time : 4 weeks

Packaging Details : Plywood case

Product Name : 20T Electric Hoist with craw

Lifting capacity : 20T

Lifting height : 9-42m

Lifting speed : Inventer control

Running speed : 5-20m/min

ISO : M5

Type : Single Girder or Double girder

Contact Now

Construction Machinery Parts Suspended Platform 20T Electric Hoist with craw
Product Introduction

European electric hoist is a popular lifting equipment for material handling. it is compact and lightweight, suitable for use in factories,warehouses, etc. As an ideal hoisting mechanism, it often matches with overhead cranes and gantry cranes. it needs the main beam to support the entire electric hoist and moves along the track. its electric motor provides power source for lifting tasks. Beside these parts, European hoist also has reducer, drum set, hook and electrical control system. There producer reduces the speed of the motor and increases the torque so European hoist could meet the needs of lifting heavy objects.

Key Specifications
  • ITEM VALUE
    Applicable Industries Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining
    After Warranty Service Video technical support, Online support, Spare parts, Field maintenance and repair service
    Place of Origin China
    Power Source Electric
    Sling Type Wire Rope/chain/winch/european
    Warranty 1 Year
    Machinery Test Report Provided
    Video outgoing-inspection Provided
    Warranty of core components 1 Year
    Core Components Motor, Bearing, Gear, Gearbox
Advantage
  • Compact structure, light weight, low wheel pressure and high overall cost performance
  • Save operating costs and be low-carbon and environmentally friendly
  • Selected high-quality accessories, safe and reliable, durable
  • Precise positioning, efficient operation, and enhanced production efficiency
  • Safe and reliable, operation monitoring(optional), maintenance-free
  • Modular design with multiple options to meet the various working conditions of customers
Technical Specifications
Load(t) Class Lifting height (m) Lifting speed (m/s) Rope Reeving Traveling speed (m/s) Wheel load weight (kg)
1.6 M6 6, 9, 12 1.6/10 2/1 2~20 6.1, 6.2, 6.3 300, 335, 370
2.5 M6 6, 9, 12 0.8/5.0 4/1 2~20 9.1, 9.2, 9.3 315, 350, 385
3.2 M5 6, 9, 12 0.8/5.0 4/1 2~20 11.5, 11.6, 11.7 335, 370, 405
6.3 M5 6, 9, 12 0.8/5.0 4/1 2~20 22, 22.1, 22.2 400, 450, 500
8 M6 6, 9, 12 0.8/5.0 4/1 2~20 28, 28.1, 28.2 580, 610, 640
10 M5 6, 9, 12 0.8/5.0 4/1 2~20 34.7, 34.8, 34.9 580, 610, 640
10 M6 6, 9, 12 0.66/4.0 4/1 2~20 34.7, 34.8, 34.9 650, 690, 730
12.5 M5 6, 9, 12 0.66/4.0 4/1 2~20 43.3, 43.4, 43.5 660, 700, 740
3.2 M5 6, 9, 12 0.8/5.0 4/1 2~20 11.9 510, 525, 540
6.3 M5 6, 9, 12 0.8/5.0 4/1 2~20 20.9 632, 652, 672
10 M5 6, 9, 12 0.8/5.0 4/1 2~20 30.0 871, 896, 921
12.5 M5 6, 9, 12 0.66/4.0 4/1 2~20 40.5 890, 915, 940
16 M5 6, 9, 12 0.66/4.0 4/1 2~20 59.4, 59.7, 60.0 1314, 1348, 1381
20 M5 6, 9, 12 0.5/3.4 4/1 2~20 59.5 1718, 1766, 1814
32 M5 6, 9, 12 0.8/3.3 6/1 2~20 95, 104 2826, 2920, 3091, 3199

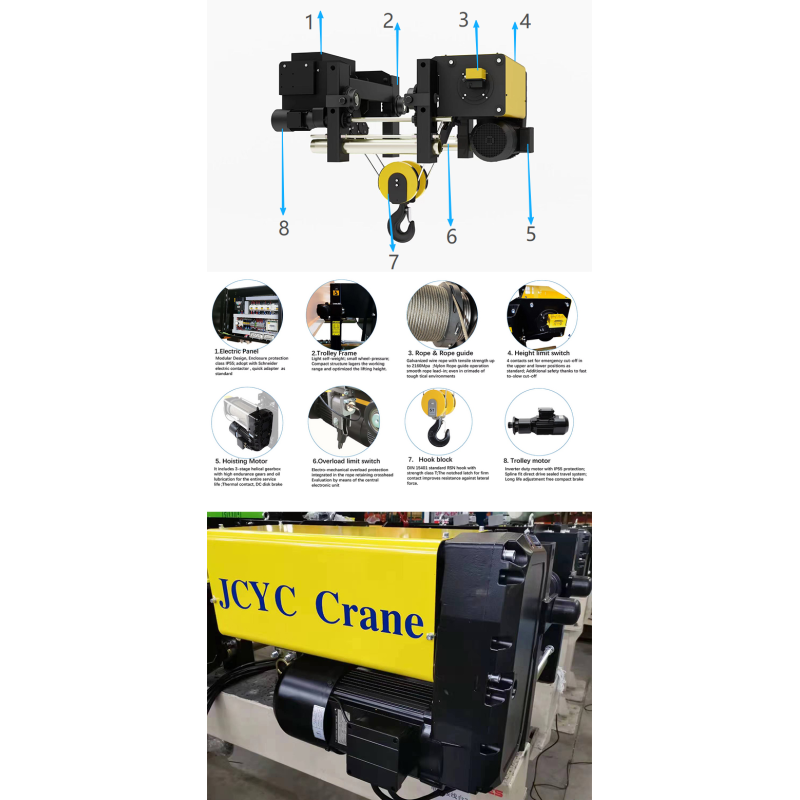

Main Components
Construction Machinery Parts Suspended Platform 20T Electric Hoist with craw
Construction Machinery Parts Suspended Platform 20T Electric Hoist with craw
Company Introduction
Construction Machinery Parts Suspended Platform 20T Electric Hoist with craw
More Products
Construction Machinery Parts Suspended Platform 20T Electric Hoist with craw
Company Certificate
Construction Machinery Parts Suspended Platform 20T Electric Hoist with craw
Frequently Asked Questions

Q1. What types of cranes do you offer?

A1:as a manufacturer with over 15 years' experience, rui cheng provide a range of cranes,in cluding gantry cranes, overhead cranes, electric hoist, ib cranes, and customized lifting solutions tailoredto specific industry needs, such as for steel, precast concrete, and container handling

Q2. How do l know which crane is suitable for my project?

A2: Our team of experts is here to help! By understanding your lifting capacity requirements,operational environment, and usage freguency, we can recommend the ideal crane solution for your project.Contact us for a free consultation.

Q3. How to choose the right crane?

A3: The following factors need to be considered when choosing a crane: Load capacity, Lifting height Working environment, Frequency of operation.

Q4. What maintenance services do you offer?

A4: We offer comprehensive maintenance plans, including preventive maintenance,inspection, repairand spare parts replacement, to keep your crane running efficiently and safely. Our service teamis available forscheduled and emergency support.

Q5: Can you accept OEM?

A5: Yes, of course. Any logo is acceptable.Material, Color, Size, Packing, Brand, Delivery etc,

Q6:What are your delivery and installation timelines?

A6: Delivery and installation timelines vary based on the type and customization of the crane Generally, standard cranes can be delivered within 6-8 weeks, while customized solutions mayreauire additional time, We aim to provide accurate timelines upfront to ensure smooth proiec tplanning.

Q7: Do you offer installation services?

A7: Yes, we provide comprehensive training programs for crane operators, including safety trainingmaintenance guidelines, and operational best practices to ensure your team is fully prepared tooperate the crane safely and efficiently.
